SIEMENS MOTION CONTROL & DRIVES
Siemens is one of the world’s leading providers of products for motion control & industrial automation, Including:
- SINUMERIK Machine Tool CNC Controls
- SIMOTION Production Machine Controls
- SIMATIC PLCs
- SINAMICS S120 AC Digital Drive Systems
- SIMOTICS Servo, Main, Linear & Torque Motors
CNC Design Group has partnered with Siemens for more than 30 years and this strong relationship allows us to support customers both in our region and worldwide.
SINUMERIK CNC CONTROLLERS

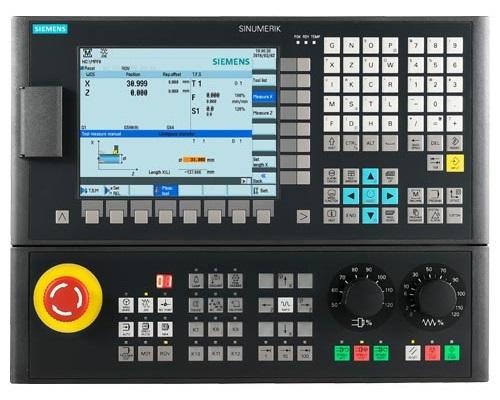

SINUMERIK 808
- Panel-based compact CNC
- Tech. Turning , Milling
- Up to 6 axes/spindles
- 1 machining channel
- 8.4" color display
- PLC based on SIMATIC S7-200
- With SINAMICS V70 Drive
SINUMERIK 828
- Panel-based compact CNC
- Tech. Turning, Milling, Grinding
- Up to 10 axes/spindles
- Up to 2 machining channels
- 15.6" touch display
- PLC based on SIMATIC S7-200
- With SINAMICS S120 Drive
SINUMERIK 840
- Drive-based modular CNC
- Multi-technology CNC
- Up to 93 axes/spindles
- Up to 30 machining channels
- Up to 24" color display
- SIMATIC S7-300 PLC 317/319
- With SINAMICS S120 Drive
SINUMERIK ONE
- Drive & panel-based modular CNC
- Multi-technology CNC
- Up to 31 axes/spindles
- Up to 10 machining channels
- Up to 24" multi-touch color display
- SIMATIC S7-1500F PLC
- With SINAMICS S120 Drive
SINUMERIK 808
- Panel-based compact CNC
- Tech. Turning , Milling
- Up to 6 axes/spindles
- 1 machining channel
- 8.4" color display
- PLC based on SIMATIC S7-200
- With SINAMICS V70 Drive
SINUMERIK 828
- Panel-based compact CNC
- Tech. Turning, Milling, Grinding
- Up to 10 axes/spindles
- Up to 2 machining channels
- 15.6" touch display
- PLC based on SIMATIC S7-200
- With SINAMICS S120 Drive
SINUMERIK 840
- Drive-based modular CNC
- Multi-technology CNC
- Up to 93 axes/spindles
- Up to 30 machining channels
- Up to 24" color display
- SIMATIC S7-300 PLC 317/319
- With SINAMICS S120 Drive
SINUMERIK ONE
- Drive & panel-based modular CNC
- Multi-technology CNC
- Up to 31 axes/spindles
- Up to 10 machining channels
- Up to 24" multi-touch color display
- SIMATIC S7-1500F PLC
- With SINAMICS S120 Drive
SIMOTION CONTROLLERS
SIMOTION D
Compact and integrated in the drive.
The SIMOTION functionality is integrated directly in the closed-loop control module of the SINAMICS S120 drive system. Therefore, the complete system is extremely compact and powerful.
SIMOTION P
SIMOTION P is a PC-based Motion Control System.
It is possible to run other PC Applications at any time including, for example, the SIMOTION engineering system, an operator application, a process data
evaluation routine or standard PC applications.
SIMOTION C
SIMOTION C is a PLC-based Motion Control System
SIMOTION C equipped additionally with two PROFIBUS interfaces via which drives with PROFIdrive as well as standard I/Os can be connected. In addition, controllers feature an Industrial Ethernet interface.
SIMOTION D
Compact and integrated in the drive.
The SIMOTION functionality is integrated directly in the closed-loop control module of the SINAMICS S120 drive system. Therefore, the complete system is extremely compact and powerful.
SIMOTION P
SIMOTION P is a PC-based Motion Control System.
It is possible to run other PC Applications at any time including, for example, the SIMOTION engineering system, an operator application, a process data
evaluation routine or standard PC applications.
SIMOTION C
SIMOTION C is a PLC-based Motion Control System
SIMOTION C equipped additionally with two PROFIBUS interfaces via which drives with PROFIdrive as well as standard I/Os can be connected. In addition, controllers feature an Industrial Ethernet interface.
more..
SIMATIC CONTROLLERS
SIMATIC S7-1200
Basic controller - New Generation
SIMATIC S7-1200 combines compact modular design with high performance, Its range of use extends from the replacement of relays and contactors up to complex automation tasks in networks and within distributed structures.
SIMATIC S7-1500
Advance controller- New Generation
A modular control system for a variety of automation applications in discrete automation.
The modular and fan-free design and convenient handling make the SIMATIC S7-1500 the cost-effective and user-friendly solution.
SIMATIC S7-300
The PLC system for the lower and medium performance ranges.
The modular and fan-free design and convenient handling make the SIMATIC S7-300 the cost-effective and user-friendly solution for the most diverse tasks in the low-end and mid performance ranges.
SIMATIC S7-400
The PLC for the mid to high-end performance ranges.
The modular and fan-free design, high level of expandability, extensive communication, make it the ideal solution even for the most demanding tasks in the mid to high-end performance ranges.
The SIMATIC Drive Controller is a drive-based SIMATIC S7-1500 and combines a fail-safe SIMATIC Controller and a SINAMICS S120 drive controller in one SINAMICS S120 Booksize Compact housing.
The SIMATIC Drive Controller is configured in TIA Portal V16 or higher with the SIMATIC STEP 7 Professional engineering software and SINAMICS Startdrive.
SIMATIC S7-1200
Basic controller - New Generation
SIMATIC S7-1200 combines compact modular design with high performance, Its range of use extends from the replacement of relays and contactors up to complex automation tasks in networks and within distributed structures.
SIMATIC S7-1500
Advance controller- New Generation
A modular control system for a variety of automation applications in discrete automation.
The modular and fan-free design and convenient handling make the SIMATIC S7-1500 the cost-effective and user-friendly solution.
SIMATIC S7-300
The PLC system for the lower and medium performance ranges.
The modular and fan-free design and convenient handling make the SIMATIC S7-300 the cost-effective and user-friendly solution for the most diverse tasks in the low-end and mid performance ranges.
SIMATIC S7-400
The PLC for the mid to high-end performance ranges.
The modular and fan-free design, high level of expandability, extensive communication, make it the ideal solution even for the most demanding tasks in the mid to high-end performance ranges.
SIMATIC DRIVE CONTROLLER
The SIMATIC Drive Controller is a drive-based SIMATIC S7-1500 and combines a fail-safe SIMATIC Controller and a SINAMICS S120 drive controller in one SINAMICS S120 Booksize Compact housing.
The SIMATIC Drive Controller is configured in TIA Portal V16 or higher with the SIMATIC STEP 7 Professional engineering software and SINAMICS Startdrive.
SINAMICS Servo Drives for complex applications
Our servo drives are designed to be cost-effective, fast, and easy to use while operating complex applications without specific drive know-how or additional engineering tools. The drives concentrate on both hardware and functionality ensuring ruggedness and reduced investment cost. The operation allows highly dynamic movement of minimal loads and ultra-precise movement of medium and high loads.
SINAMICS S120
With SINAMICS S120, you are selecting a system that offers the highest performance, productivity and flexibility. With this modular system you can quickly and simply configure the drive system that perfectly fits your requirements – and that, for almost any drive application.
SINAMICS S200
Let's enjoy a system solution both optimized and efficient! The system comprises a SINAMICS S200 servo drive, a SIMOTICS S-1FL2 servo motor and Motion Connect cables. With a power range extending from 0.1kW up to 7kW and various communication options such as PROFINET IRT and pulse train, the system has been specifically designed to address a wide range of standard applications.
SINAMICS S210
The new SINAMICS S210 servo drive system is setting higher standards for dynamic applications in many industries thanks to improved hardware and software as well as integrated safety and technology functions. The SINAMICS S210 system consists of a servo drive and a servo motor and is designed for solutions with high dynamics in the power range from 50 W to 7 kW. Discover your possibilities.
SINAMICS V90
The system comprises the SINAMICS V90 servo drive and the SIMOTICS S-1FL6 servo motor covering a power range of 0.05 to 7.0 kW for operation in single and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 system enables simple motion control tasks to be implemented cost-efficiently with the focus being on dynamic motion and processing.
SINAMICS S120
The flexible and high-performance drive system.
SINAMICS S120 offers high-performance single-axis and multi-axis drives for a very broad range of industrial applications. SINAMICS S120 is the ideal system for satisfying the ever increasing demand for more axes and better performance.
SINAMICS S110
The basic positioning drive for single-axis applications.
Many applications in mechanical engineering and plant construction require machine axes to be positioned quickly and precisely by the simplest possible method. The SINAMICS S110 drive is ideally suited to this type of application.
SINAMICS V90
The optimized servo drive solution for motion control applications.
Siemens offers solutions for simple and more highly dynamic applications. The compact devices are suitable for industrial applications, for example in electronic assembly machines, the printing and packaging industries, and for material handling machines.
SINAMICS G120
The modular multifunctional frequency converter.
The Control Unit controls & monitors the Power Module and motor using closed-loop control types. power range up to 250 kW. It features state-of-the-art IGBT technology with pulse width modulation for extremely reliable and flexible motor operation.
A permanently excited synchronous motor is the first choice for highly dynamic and exact motion paths.
Synchronous motor applications include position-controlled positioning, in clock drives or for path control, handling devices, and machine tools.
Discover the high dynamics, compactness, efficiency and robustness of the Siemens’ synchronous motor! - Highest standards for maximum efficiency
SIMOTICS S-1FK7
SIMOTICS S-1FK7 motors are permanent magnet excited synchronous motors which are available in the versions Compact, High Dynamic and High Inertia. The motors are characterized by superior overload capability, ruggedness and compactness. The connection via rotatable connectors and preassembled cables ensures a flexible, fast and safe connection to the converter.
SIMOTICS S-1FT7
SIMOTICS S-1FT7 servomotors are permanent-magnet synchronous motors with very compact dimensions. They meet the highest requirements for precision, dynamics and speed control range while offering a high degree of protection and robustness. Equipped with state-of-the-art encoder technology, the motors are optimized for operation on our fully digital drive and control systems.
SIMOTICS S-1FK2/ S-1FT2
SIMOTICS S-1FK2 / S-1FT2 servomotors are compact and highly dynamic permanent-magnet synchronous motors to address a wide range of uses in an industrial environment. They are characterized by high power density, degree of protection and overload capability. The motors are connected through rotatable connectors and prefabricated cables to ensure flexible, fast and secure connection to the converter
SIMOTICS S-1FL6
The system comprises the SINAMICS V90 servo drive and the SIMOTICS S-1FL6 servo motor covering a power range of 0.05 to 7.0 kW for operation in single and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The SINAMICS V90 system enables simple motion control tasks to be implemented cost-efficiently with the focus being on dynamic motion and processing.
Compact, robust and powerful: If the continuous concentricity of the axes is your primary application requirement, a Siemens main motor is ideal.
Our induction motor line offers power ranging from 2.8 to 1340 kW making it perfect for virtually every application from roller drives in printing presses to machine tool spindles as well as use in lifting gears.
SIMOTICS M-1PH1
Excellent performance characteristics for compact entry-level machine tools. Low complexity and user-friendliness play an important role, especially in the compact class. The SIMOTICS M-1PH1 motor series is a spindle motor generation designed for universal use in systems and machines with motion control applications.
SIMOTICS M-1PH3
Excellent higher-level performance characteristics for compact machine class. SIMOTICS M-1PH3 main spindle motors cover sufficient speed ranges for the compact class in addition to the suitable power. Together with the SINAMICS S120 drive system, the motor is a dynamic and powerful main drive system with high performance.
SIMOTICS M-1PH8
SIMOTICS M-1PH8 motors have been especially designed for use as main drives in production machines and machine tools. In addition to asynchronous and synchronous versions, the motors are also available with synchronous-reluctance technology. Based on a flexible modular kit system, the suitable SIMOTICS M-1PH8 motor can be found for nearly all drive tasks.
SIMOTICS 1FK7
1FK7 motors are permanent magnet excited synchronous motors which are available in the versions Compact, High Dynamic and High Inertia. The motors are characterized by superior overload capability, ruggedness and compactness. The connection via rotatable connectors and preassembled cables ensures a flexible, fast and safe connection to the converter.
SIMOTICS 1FT7
1FT7 servomotors are permanent-magnet synchronous motors with very compact dimensions. They meet the highest requirements for precision, dynamics and speed control range while offering a high degree of protection and robustness. Equipped with encoder technology, the motors are optimized for operation on digital drive and control systems.
SIMOTICS 1FL6
SINAMICS V90 /V70 drive and the SIMOTICS S-1FL6 servo motor covering a power range of 0.05 to 7.0 kW for operation in single and three-phase networks. It can be integrated easily via PTI, PROFINET, USS or Modbus RTU. The system enables simple motion control tasks to be implemented cost-efficiently with the focus being on dynamic motion and processing.
SIMOTICS 1PH8
1PH8 motors have been especially designed for use as main drives in production machines and machine tools. In addition to asynchronous and synchronous versions, the motors are also available with synchronous-reluctance technology. Based on a flexible modular kit system, the suitable SIMOTICS M-1PH8 motor can be found for nearly all drive tasks.
SIEMENS Partnership Certificate

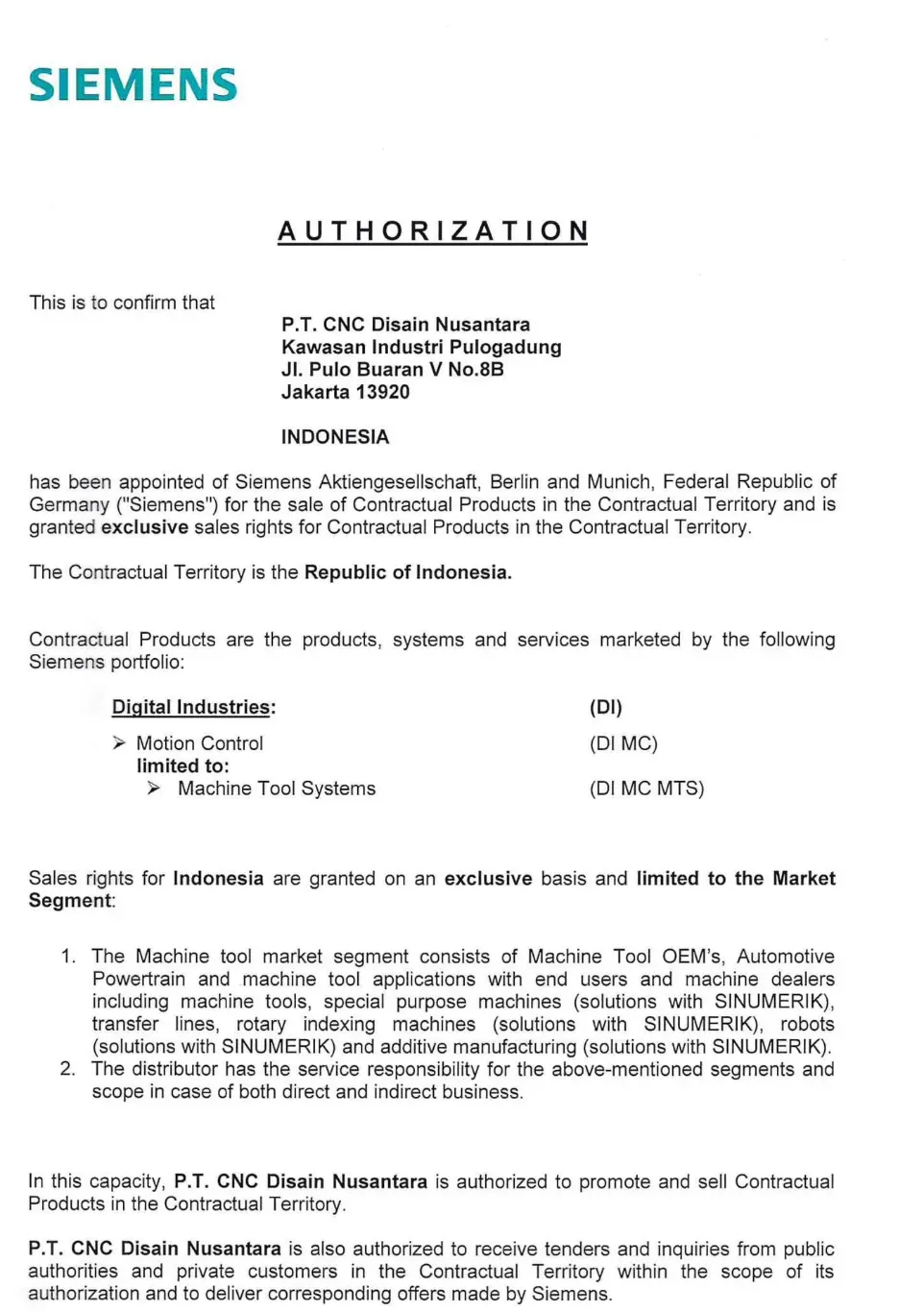

Exclusive Partner
Motion Control
Machine Tool System (SINUMERIK)
Siemens Aktiengesellschaft, Berlin & Munich, Germany
Siemens Solution Partner
Automation Drives
Excellent application and system expertise
PT Siemens Indonesia
Siemens Certified Partner
System Integrator
Factory Automation, Drives and Motion
PT Siemens Indonesia
